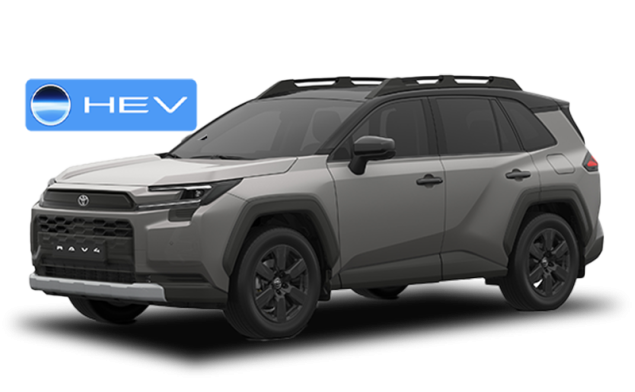

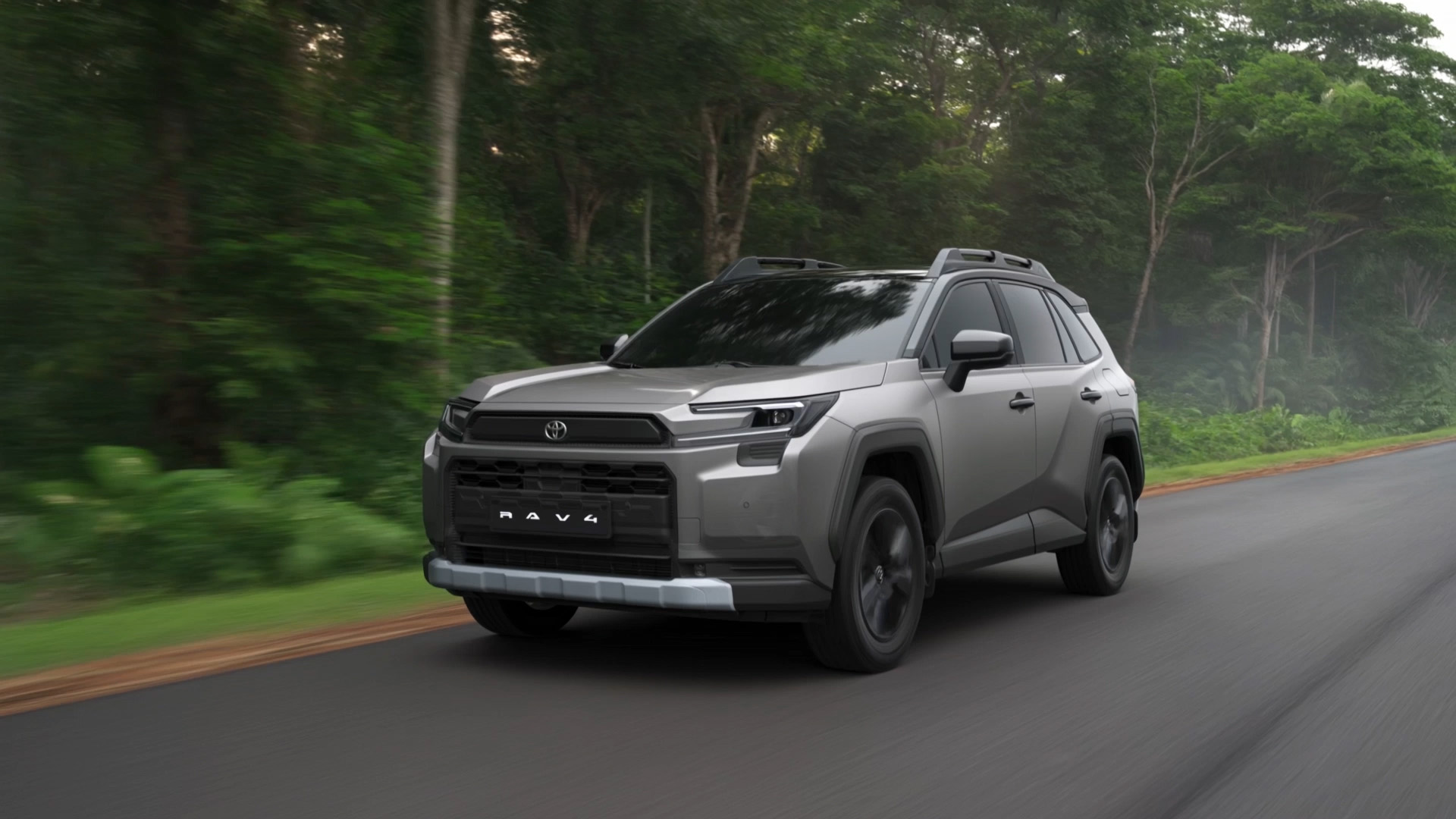

RAV4 Hybrid Electric
Since 1994, the RAV4 has embodied innovation and reliability in the SUV world. Today, it enters its sixth generation with a Hybrid Electric Vehicle (HEV) powertrain, bold design, and advanced technologies for a smooth, connected driving experience.
Technical Specifications
ENGINE
- Fuel type : Petrol
- Displacement (cc) : 2487
- Fuel System : Electronic Fuel Injection
DIMENSIONS
- Dimensions (Lxwxh) in mm : 4600x1855x1695
- Ground clearance (mm) : 201
TRANSMISSION
- Transmission : Front 2 WD, Part time automatic 4x4
- Gearbox : Automatic CVT
WEIGHT/CAPACITIES
- Trunk volume (L) : 481
- Fuel tank capacity (L) : 55
PERFORMANCES
- Acceleration (sec) : 0 to 100km/h : 7.7
WARRANTY
- Manufacturer Warranty : 3 years / 100 000 Km
- Retail Network : TOYOTA
Loading...
Models available

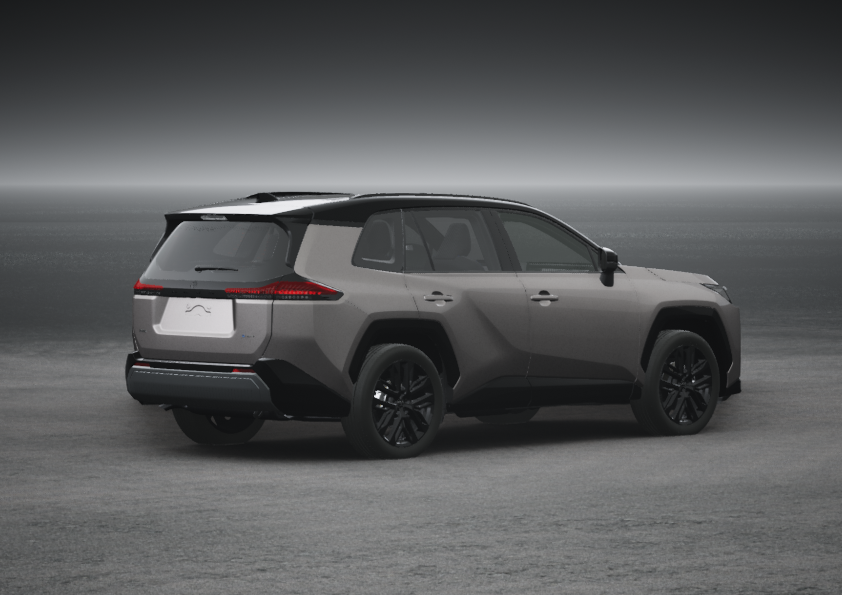

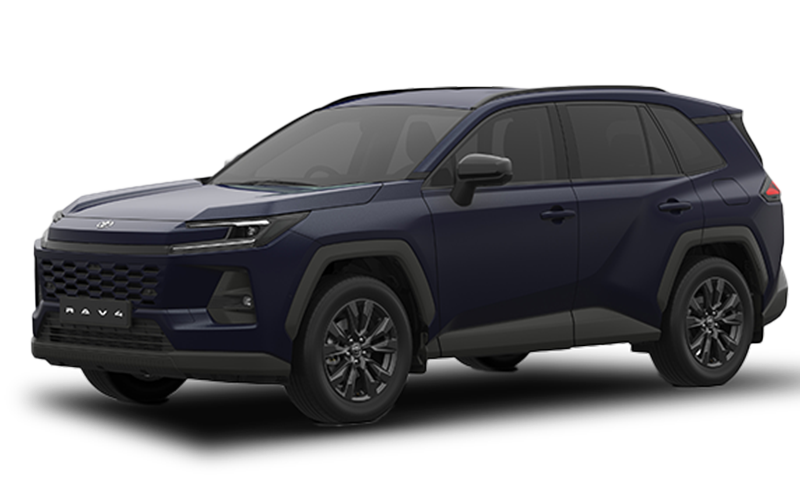

2.5L Active HYBRID 4x2
ABS
Air conditioning
Airbags
Connectivity
Door unlock alert
Electronic stability control
Fog lamps
Hill-start assist control
Immobilizer
Power windows
Spare Wheel Type
RAV4 Hybrid Electric 2.5L Active HYBRID 4x2
Technical Specifications
ENGINE |
|
| Combined power (kW) | Front : 100 |
| Displacement (cc) | 2487 |
| Electric Engine Type | Permanent Magnet Synchronous |
| Engine Type | Cylinder in line |
| Fuel System | Electronic Fuel Injection |
| Fuel type | Petrol |
| Horse power Hp | 186 |
| Max power HP/rpm | 186/6000 |
| Max power kW/rpm | 137/6000 |
| Max torque Nm | 221/3600-5200 |
| Number of cylinders | 4 |
| Valve drive mode | DOHC |
| Valves/cylinder | 4 |
 BODY |
|
| Body style | SUV |
| Chassis | Full unit body |
| Keys Type | SmartKey |
| Number of doors | 5 |
DIMENSIONS |
|
| Departure angle | 22 |
| Dimensions (Lxwxh) in mm | 4600x1855x1695 |
| Front tread (mm) | 1600 |
| Ground clearance (mm) | 201 |
| Rear tread (mm) | 1625 |
| Turning radius (m) | 5.63 |
| Wheelbase (mm) | 2690 |
TRANSMISSION |
|
| Drive mode select | Sport, Normal et Eco |
| Gearbox | Automatic CVT |
| Transmission | Front 2 WD |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 1645 |
| Fuel tank capacity (L) | 55 |
| Gross vehicle weight (kg) | 2170 |
| Number of seats | 5 |
| Payload (kg) | 525 |
| Trunk volume (L) | 481 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Electric |
| Rear brake | Discs |
 SUSPENSIONS |
|
| Front suspension | MacPherson strut |
| Rear suspension | Coil type |
 TYRES |
|
| Type pneu | Normal |
| Tyre dimension | 235/60R18 |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | 7.7 |
| Max speed (km/h) | 180 |
 BATTERIES |
|
| Battery Capacity (kWh) | 1,09 |
Equipments
INTERIOR & COMFORT |
|
| 2nd row seats | Folding 40/60 |
| Adjustable steering wheel | Height and reach adjustable |
| Air cleaning system | Yes |
| Air conditioning | Automatic driver & passenger |
| Audio system | JBL |
| Camera | Rear |
| Cargo cover | Soft |
| Central armrest | Front, Rear |
| Central door locking | Yes |
| Central door locking while driving | Yes |
| Connectivity | Android Auto, USB, Bluetooth, Apple CarPlay, MirrorLink |
| Cup holder(s) | Front, Rear |
| Driver seat | Height and reach adjustable |
| Gearshift & Brake lever | PVC |

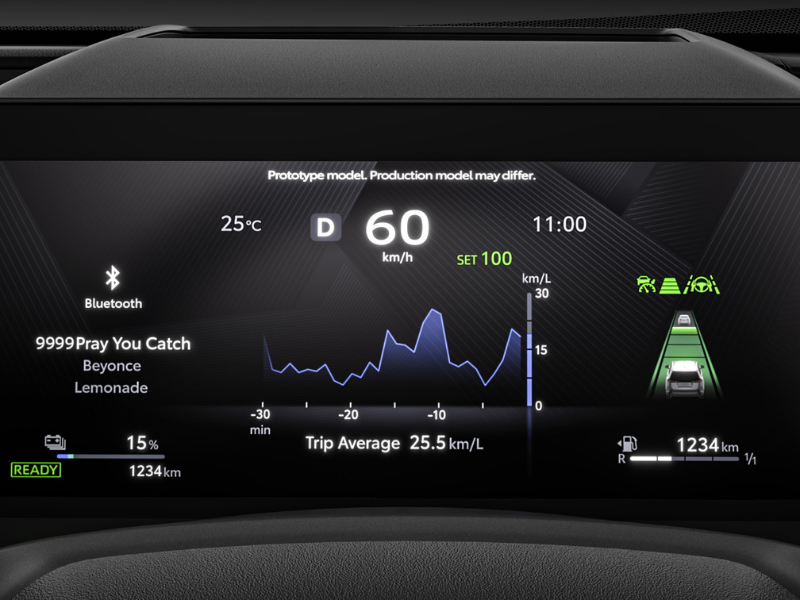

| Information display | LCD 12.3" |
| Inside opener | Fuel lid |
| Keyless entry system | Yes |
| Loud speakers | 6 |
| Plug 12V | 2 |
| Power Steering | Yes |
| Power windows | Rear, Front |
| Push & start system | Yes |
| Radio | Radio MP3 |
| Room lamps | Yes |
| Sequential electric windows | Front |
| Smart keys | Yes |
| Steering wheel | Urethane |
| Steering wheel audio control | Yes |
| Sun visor | Yes |
| Sunvisor with mirror | Driver & Passenger |
| Tinted windows | Yes |
| Touchscreen | 10.5" |
| Upholstery | Fabric |
| USB charging ports | Front |
| Wireless door lock | Yes |
ACTIVE SAFETY |
|
| ABS | Yes |
| Daytime running lights | LED |
| Demister | Rear windows, Windshield, Door mirrors |
| Door unlock alert | Yes |
| Electronic stability control | VSC |
| Eletronic Brakeforce distribution (EBD) | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Full LED |
| High position brake lamp | Yes |
| Hill-start assist control | Yes |
| Immobilizer | Yes |
| Seatbelt warning | Yes |
| Side turn lamp | Yes |
| Tyre pressure indicator | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Electric |
| Bumper - Front&Rear | Body colour |
| Door handles | Body colour |
| Door mirrors | Black |
| Folding side mirrors | Electric |
| Front bumpers | Body colour |
| Front grill | Black |
| Mudguards | Rear, Front |
| Outside Rr view mirror (auto folding) | Yes |
| Rear bumpers | Body colour |
| Spoiler | Rear |
| Wheels | Aluminium |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger, Side, Knees (driver) |
| Anti-theft alarm | Yes |
| Fire extinguisher | Yes |
| Headrests | Rear, Front |
| ISOFIX fixings | Rear |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Rear, Front |
| Seatbelts - Front | 2 x 3 points |
| Seatbelts – Rear | 3 points |
| Spare Wheel Location | Under the Vehicle |
| Spare Wheel Type | Alloy |

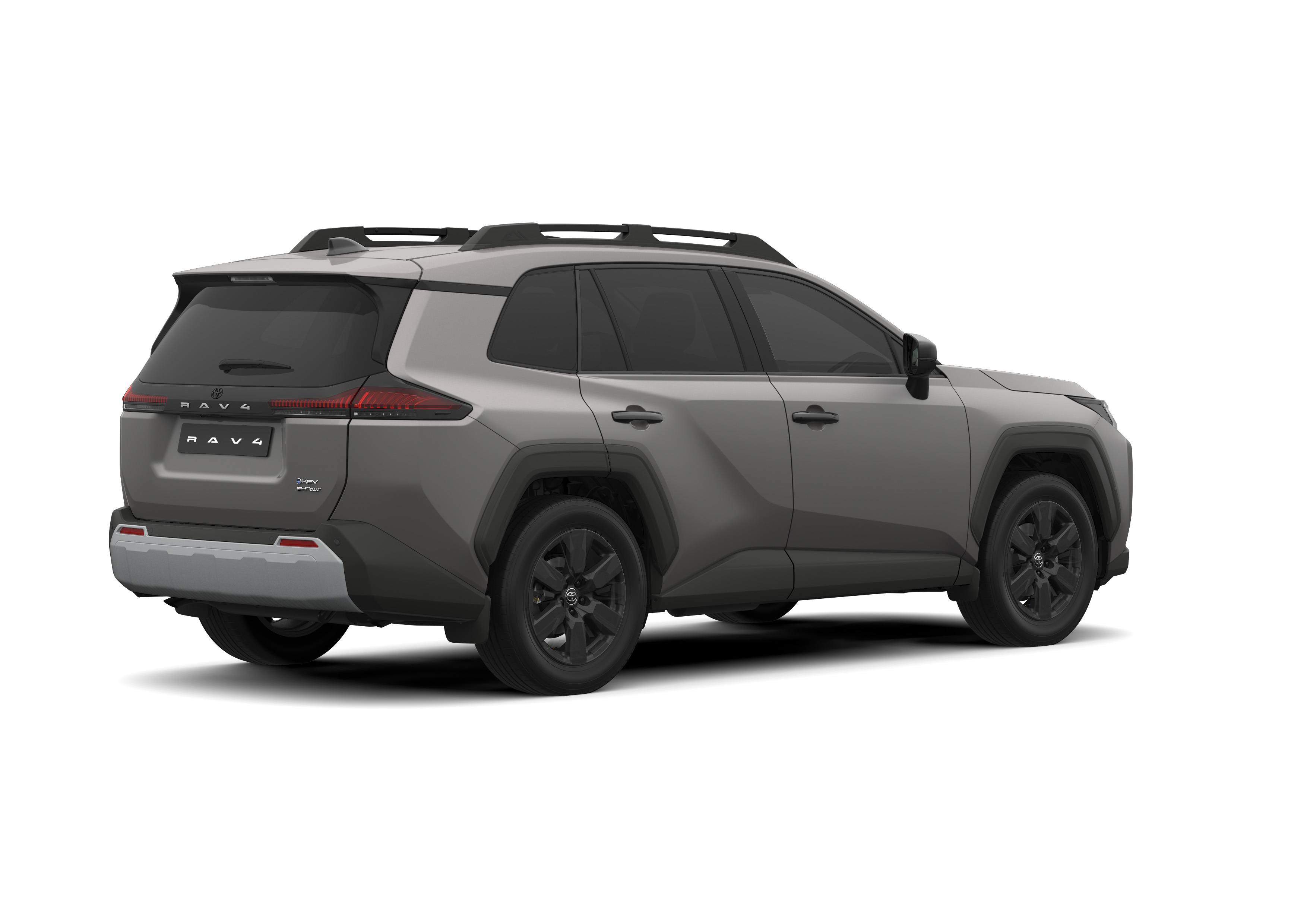

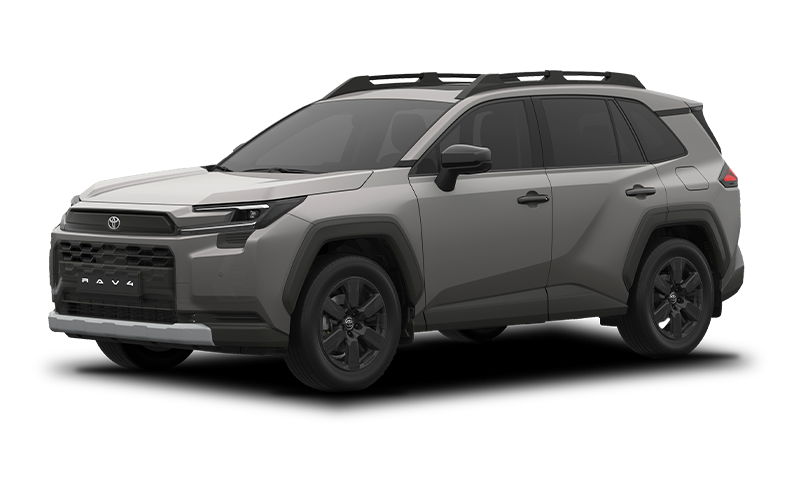

2.5L Adventure HYBRID 4x4
ABS
Air conditioning
Airbags
Connectivity
Door unlock alert
Downhill assist control
Electronic stability control
Fog lamps
Hill-start assist control
Immobilizer
Power windows
Rain sensor
Spare Wheel Type
RAV4 Hybrid Electric 2.5L Adventure HYBRID 4x4
Technical Specifications
ENGINE |
|
| Combined power (kW) | Front : 100 / Rear : 39.9 |
| Displacement (cc) | 2487 |
| Electric Engine Type | Permanent Magnet Synchronous |
| Engine Type | Cylinder in line |
| Fuel System | Electronic Fuel Injection |
| Fuel type | Petrol |
| Horse power Hp | 186 |
| Max power HP/rpm | 186/6000 |
| Max power kW/rpm | 137/6000 |
| Max torque Nm | 221/3600-5200 |
| Number of cylinders | 4 |
| Valve drive mode | DOHC |
| Valves/cylinder | 4 |
BODY |
|
| Body style | SUV |
| Chassis | Full unit body |
| Keys Type | SmartKey |
| Number of doors | 5 |
DIMENSIONS |
|
| Departure angle | 22 |
| Dimensions (Lxwxh) in mm | 4620x1880x1745 |
| Front tread (mm) | 1620 |
| Ground clearance (mm) | 201 |
| Rear tread (mm) | 1645 |
| Turning radius (m) | 5.64 |
| Wheelbase (mm) | 2690 |
TRANSMISSION |
|
| Drive mode select | Sport, Normal et Eco |
| Gearbox | Automatic CVT |
| Transmission | Part time automatic 4x4 |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 1730 |
| Fuel tank capacity (L) | 55 |
| Gross vehicle weight (kg) | 2230 |
| Number of seats | 5 |
| Payload (kg) | 500 |
| Trunk volume (L) | 481 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Electric |
| Rear brake | Discs |
SUSPENSIONS |
|
| Front suspension | MacPherson strut |
| Rear suspension | Coil type |
TYRES |
|
| Tyre dimension | 235/60R18 |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | 7.3 |
| Max speed (km/h) | 180 |
BATTERIES |
|
| Battery Capacity (kWh) | 1.09 |
Equipments
INTERIOR & COMFORT |
|
| 2nd row seats | Folding 40/60 |
| Adjustable steering wheel | Height and reach adjustable |
| Air cleaning system | Yes |
| Air conditioning | Automatic driver & passenger |
| Audio system | JBL |
| Camera | Rear |
| Cargo cover | Soft |
| Central armrest | Front, Rear |
| Central door locking | Yes |
| Connectivity | USB, Bluetooth, Apple CarPlay, Android Auto, MirrorLink |
| Cup holder(s) | Front, Rear |
| Day/night automatic rearview mirror | Yes |
| Driver seat | Height and reach adjustable |
| Electric Tailgate | Opener & Locking |
| Gearshift & Brake lever | Leather |
| Heated seats | Yes |
| Heated seats | Front |
| Information display | LCD 12.3" |
| Inside opener | Fuel lid |
| Keyless entry system | Yes |
| Loud speakers | 6 |
| Lumbar support | Yes |
| Plug 12V | 2 |
| Power back door | Yes |
| Power seats | Driver |
| Power Slide / Tilt Moonroof | Yes |
| Power Steering | Yes |
| Power windows | Front, Rear |
| Push & start system | Yes |
| Radio | Radio MP3 |
| Room lamps | Yes |
| Sequential electric windows | Front |
| Smart keys | Yes |
| Steering wheel | Leather |
| Steering wheel audio control | Yes |
| Sun visor | Yes |
| Sunvisor with mirror | Driver & Passenger |
| Tinted windows | Yes |
| Touchscreen | 10.5" |
| Upholstery | Synthetic leather |
| USB charging ports | Front, Rear |
| Wireless Charging | Yes |
| Wireless door lock | Yes |
ACTIVE SAFETY |
|
| ABS | Yes |
| Adaptative Cruise Control | Yes |
| Blind Spot Monitoring | Yes |
| Daytime running lights | LED |
| Demister | Rear windows, Windshield, Door mirrors |
| Door unlock alert | Yes |
| Downhill assist control | Yes |
| Electronic stability control | VSC |
| Eletronic Brakeforce distribution (EBD) | Yes |
| Fog lamps | Front |
| Headlamp warning | Yes |
| Headlamps | Full LED |
| High position brake lamp | Yes |
| Hill-start assist control | Yes |
| Immobilizer | Yes |
| Lane assistant | Yes |
| Preventive Collision System | Yes |
| Rain sensor | Yes |
| Seatbelt warning | Yes |
| Side turn lamp | Yes |
| Tyre pressure indicator | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Electric |
| Bumper - Front&Rear | Body colour |
| Door handles | Body colour |
| Door mirrors | Black |
| Folding side mirrors | Electric |
| Front bumpers | Body colour |
| Front grill | Black |
| Mudguards | Front, Rear |
| Outside Rr view mirror (auto folding) | Yes |
| Rear bumpers | Body colour |
| Roof rails | Yes |
| Spoiler | Rear |
| Towing hook | Front, Rear |
| Wheels | Aluminium |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger, Side, Knees (driver), Curtains |
| Fire extinguisher | Yes |
| Headrests | Front, Rear |
| ISOFIX fixings | Rear |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front, Rear |
| Seatbelts - 2nd row | 3 x 3 points |
| Seatbelts - Front | 2 x 3 points |
| Seatbelts – Rear | 3 points |
| Spare Wheel Location | Under the Vehicle |
| Spare Wheel Type | Alloy |

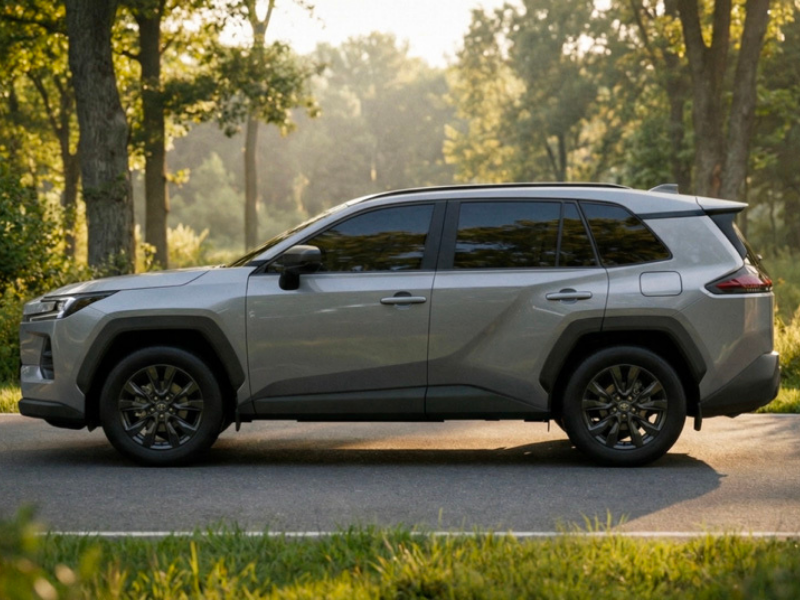

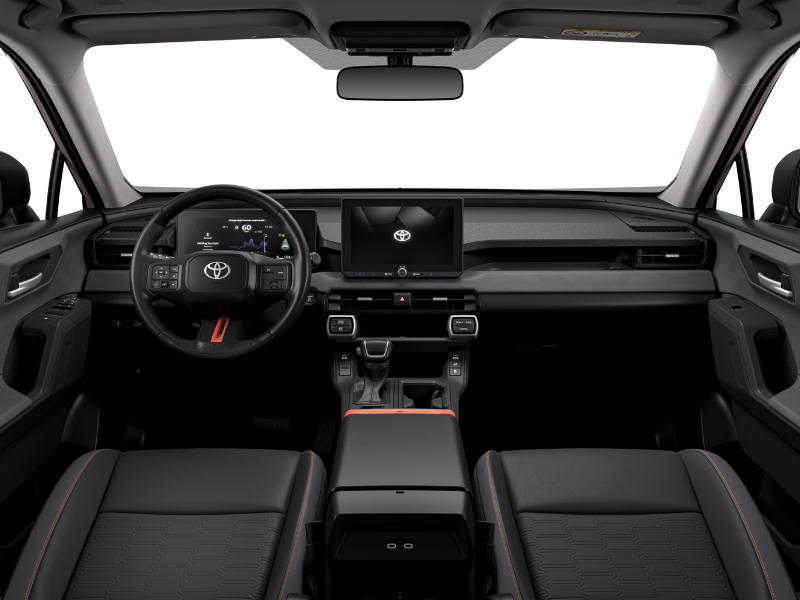

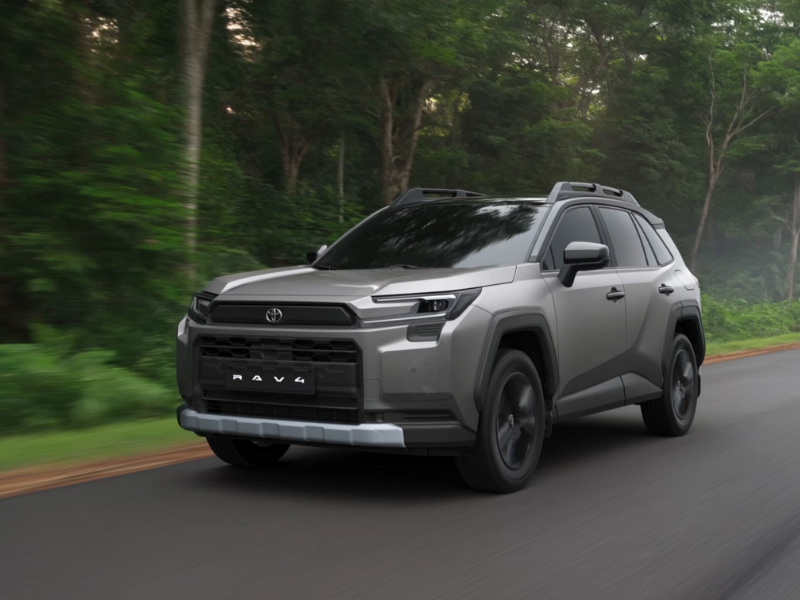

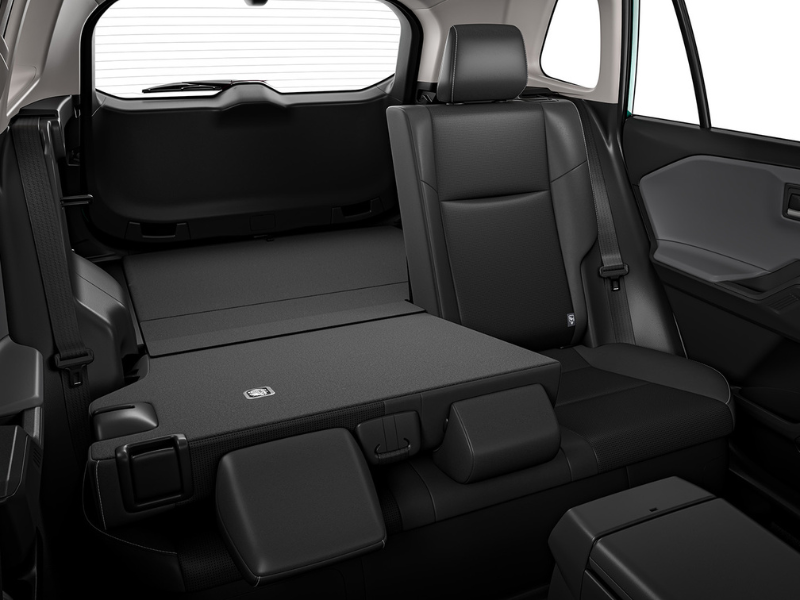

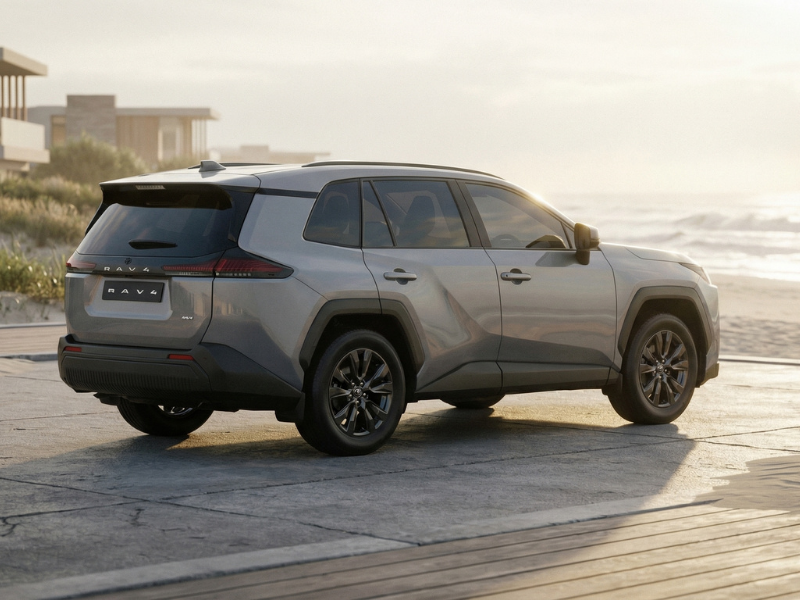

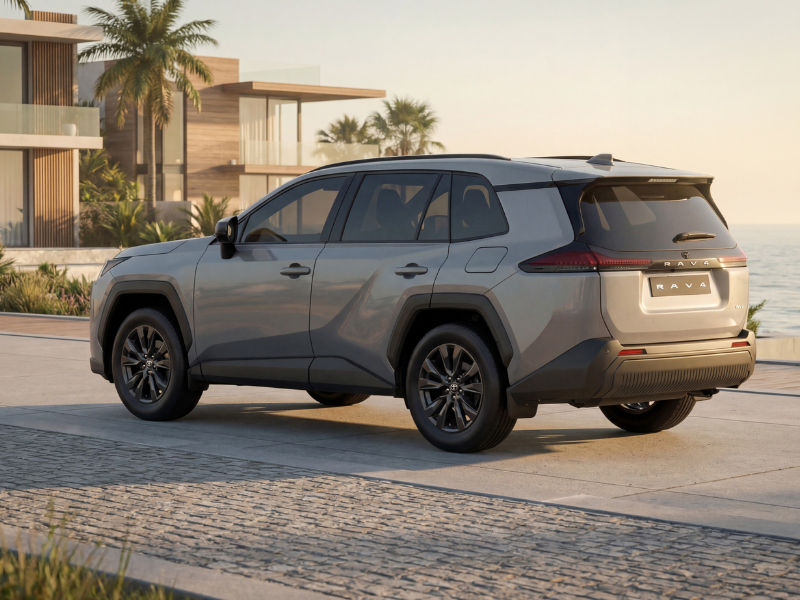

Gallery
Non-contractual images
